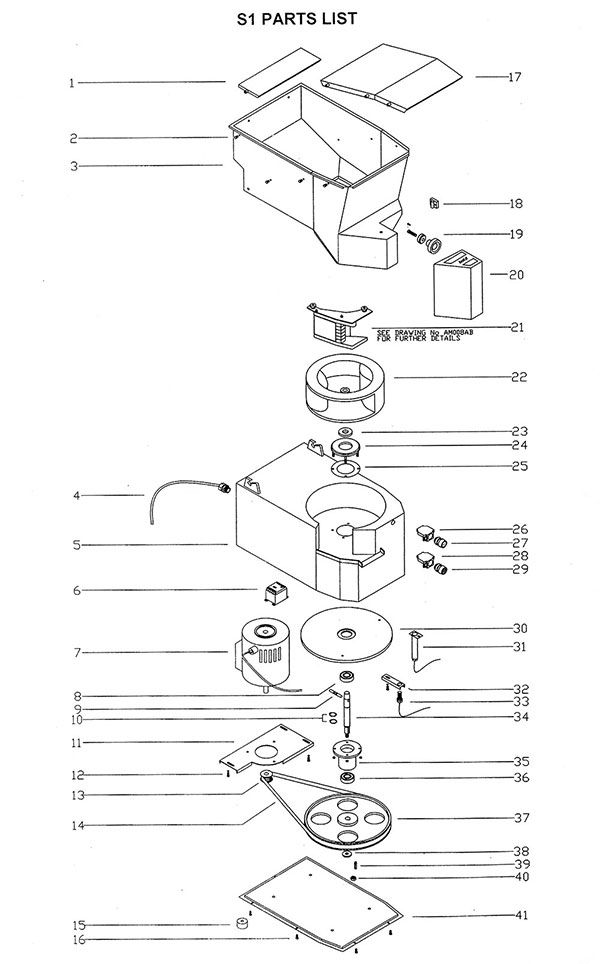

BOLD S1 CHIPPER DIAGRAM AND PARTS

Description

No	Part Name
1	Bold S1 – Hopper safety guard (small)
2	Bold S1 – Safety guard screws x10
3	Bold S1 – Hopper
4	Bold S1 – Cable with gland
5	Bold S1 – Main case
6	Bold S1 – Contactor
7	Bold S1 – Motor
8	Bold S1 – Bearing
9	Bold S1 – Cross pin
10	Bold S1 – Cir clips
11	Bold S1 – Motor support plate
12	Bold S1 – Motor plate s/s bolts x3
13	Bold S1 – Motor pulley
14	Bold S1 – Belt
15	Bold S1 – Non slip feet x4
16	Bold S1 – s/s Base Screws x 7
17	Bold S1 – Hopper safety guard (large)
18	Bold S1 – Magnet holder (inc magnet)
19	Bold S1 – Hopper knob
20	Bold S1 – s/s Extension chute
21	Bold S1 – Knife Block (various sizes
22	Bold S1 – Rotor
23	Bold S1 – Oil seal
24	Bold S1 – Oil seal housing
25	Bold S1 – Oil seal housing Gasket
26	Bold S1 – Contact block
27	Bold S1 – Start button
28	Bold S1 – Contact block
29	Bold S1 – Stop button
30	Bold S1 – Aluminium plate
31	Bold S1 – proximity switch with holder
33	Bold S1 – Proximity switch bracket
34	Bold S1 – Proximity switch
35	Bold S1 – Shaft
36	Bold S1 – Bearing housing
37	Bold S1 – Bearing
38	Bold S1 – Large pulley
39	Bold S1 – Washer
40	Bold S1 – Key
41	Bold S1 – Nylock nut
42	Bold S1 – Base cover
