Product: BOLD R1 CHIPPER DIAGRAM AND PARTS LIST
BOLD R1 CHIPPER DIAGRAM AND PARTS LIST
Contact for Price
Description

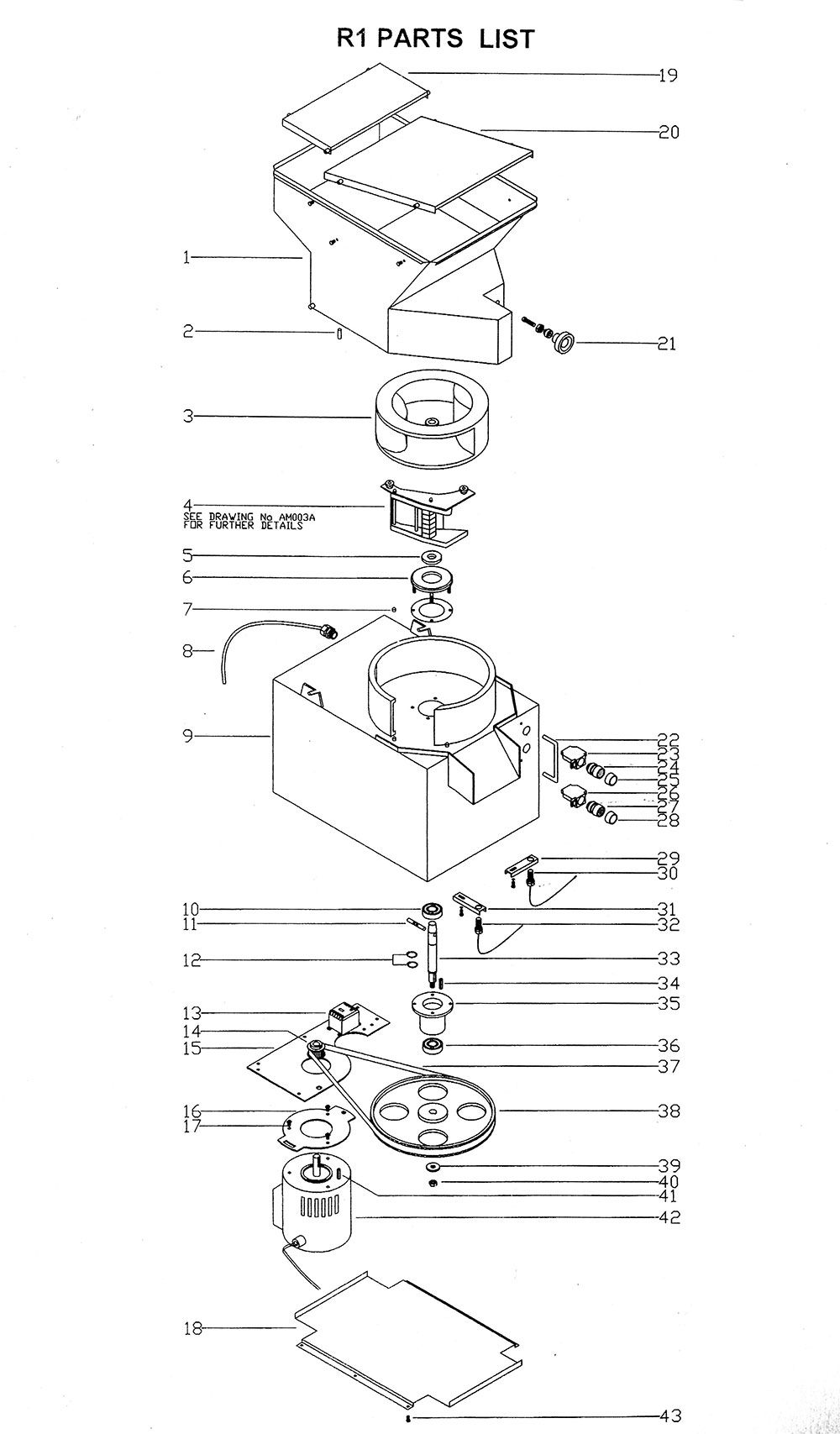

Bold R1 Parts List
| No | Description |
| 1 | Bold R1 Hopper |
| 2 | Bold R1 Magnet |
| 3 | Bold R1 Rotor |
| 4 | Bold R1 Knife Block (various sizes) |
| 5 | Bold R1 Oil seal |
| 6 | Bold R1 Oil seal housing |
| 7 | Bold R1 Location pins |
| 8 | Bold R1 Cable with gland |
| 9 | Bold R1 Main case |
| 10 | Bold R1 Bearing |
| 11 | Bold R1 Cross pin |
| 12 | Bold R1 Cir clips |
| 13 | Bold R1 Contactor |
| 14 | Bold R1 Motor pulley |
| 15 | Bold R1 Motor support plate |
| 16 | Bold R1 Motor plate |
| 17 | Bold R1 Motor plate screws x 3 |
| 18 | Bold R1 Base cover |
| 19 | Bold R1 Hopper safety guard (small) |
| 20 | Bold R1 Hopper safety guard (large) |
| 21 | Bold R1 Hopper knob |
| 22 | Bold R1 Switch guard |
| 23 | Bold R1 Contact block |
| 24 | Bold R1 Start button |
| 25 | Bold R1 Protective cover |
| 26 | Bold R1 Contact block |
| 27 | Bold R1 Stop button |
| 28 | Bold R1 Protective cover |
| 29 | Bold R1 Proximity switch bracket |
| 30 | Bold R1 Proximity switch |
| 31 | Bold R1 Proximity switch bracket |
| 32 | Bold R1 Proximity switch |
| 33 | Bold R1 Shaft |
| 34 | Bold R1 key |
| 35 | Bold R1 Bearing housing |
| 36 | Bold R1 Bearing |
| 37 | Bold R1 Belt |
| 38 | Bold R1 Large pulley |
| 39 | Bold R1 Washer |
| 40 | Bold R1 Nylock nut |
| 41 | Bold R1 Key |
| 42 | Bold R1 Motor |
| 43 | Bold R1 Screw x 6 |
